新聞中心

2022/12/17

什麼是密封和氣密連接器?抗氧化抗腐蝕連接器解決方案

佳楠將在本文中為您詳細介紹與解析密封&氣密連接器的不同之處,以及佳楠所設計之密封&氣密連接器是如何進行功能測試。



快速導讀:





什麼是密封連接器與氣密連接器?

密封連接器和氣密連接器,專門設計用於保護連接器免受因濕氣或氣體進入而引起的氧化或腐蝕,並且確保訊號傳輸不受干擾,設計要求上十分嚴格,也有較多需要考量的方面,諸如真空度、壓力差、密封材料類型、泄漏率等,經常出現在工業應用情境。





你們有哪些類型的氣密與密封連接器?IP等級是多少?

佳楠所提供氣密與密封連接器解決方案的連接器類型包括 N、BNC、TNC、SMA 和接頭(Adapter),我們的密封連接器提供符合 IP 68規範等級的防水防塵保護,氣密連接器可密封性<1X10-8 cc/秒防護等級,皆適用於戶外和嚴苛環境條件。

可為顧客進行客製化規格設計生產。

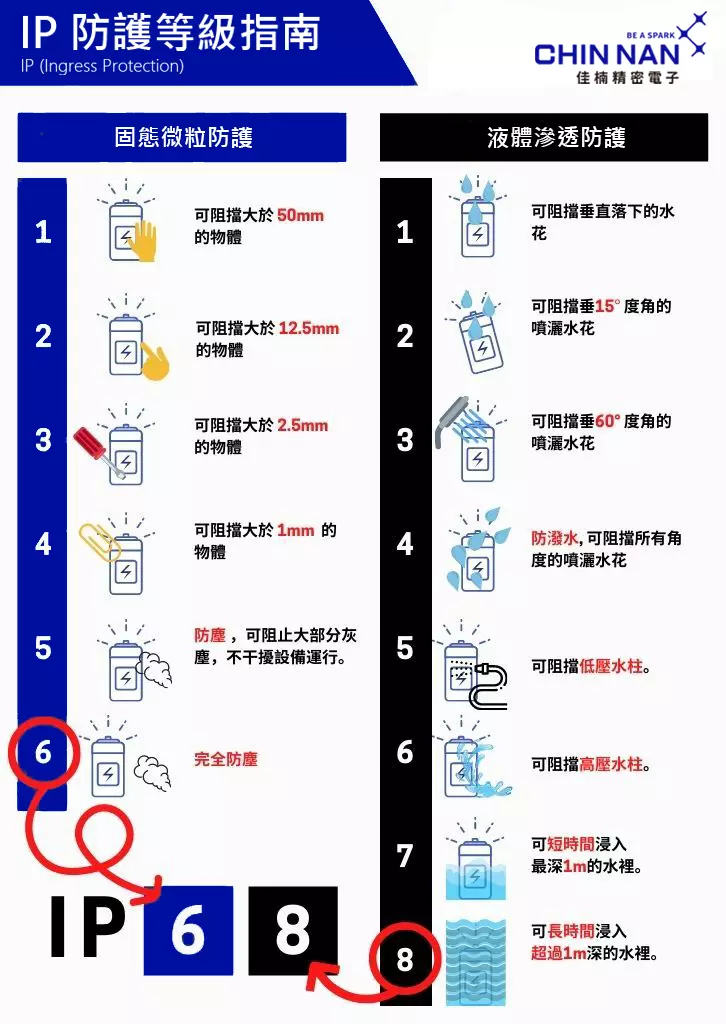

IP防護等級指南

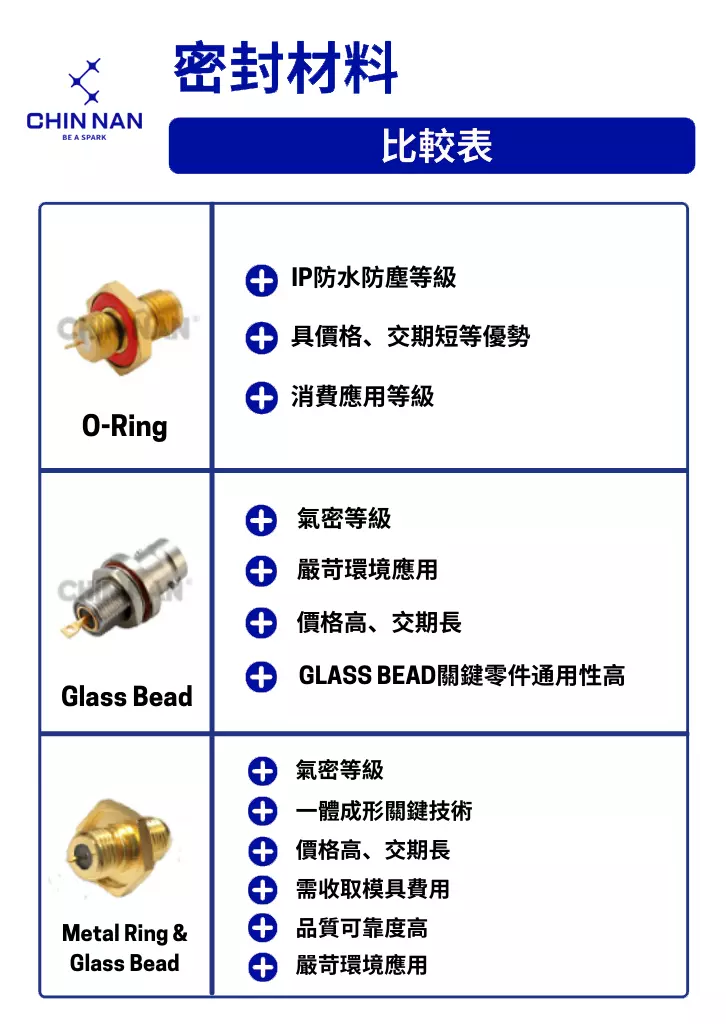

比較表:密封材料

密封材料如O型圈(O-Ring)和燒結件(Glass bead) 是設計氣密與密封連接器時常用的密封材料。玻璃燒結件對氣密、密封連接器的而言,是理想的電絕緣材料,它可以提供非常高強度的機械特性和可靠的密封、氣密性能表現。



佳楠也提供連接器主體與玻璃燒結合成的一體式設計,連接器在脫離插配狀態或替換時,密封連接器和氣密連接器,都能夠輕鬆實現密封狀態,完美的達到密封功能。
下圖列出了不同密封材料之間的比較。


密封材料比較表

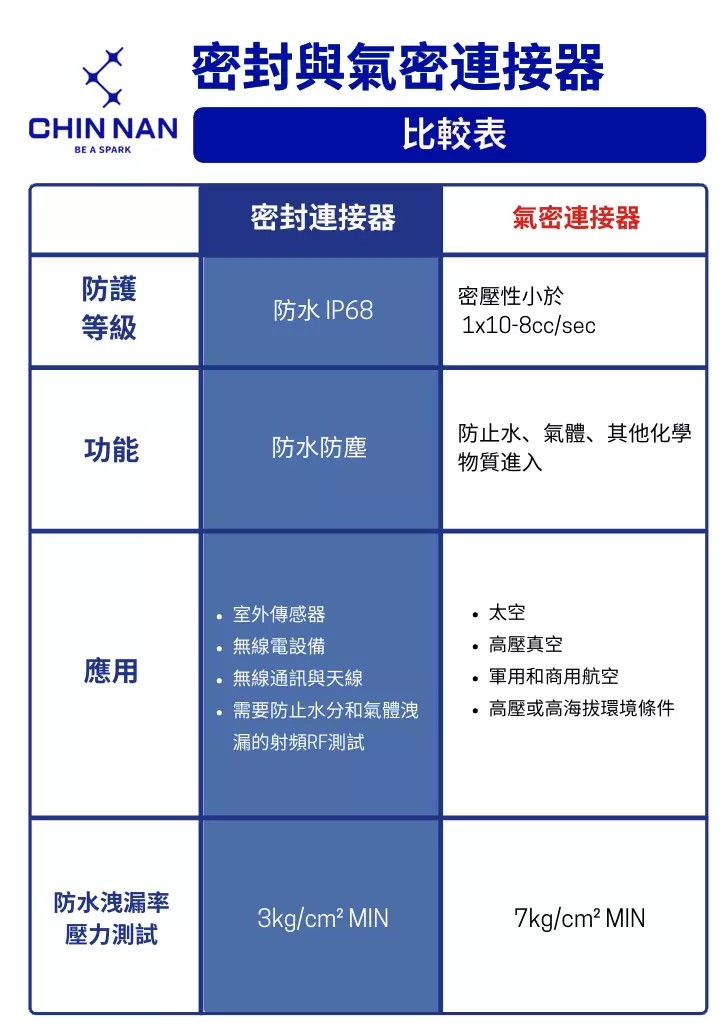

比較表:氣密連接器與密封連接器

下表列出了密封和氣密密封連接器的特點,以幫助您更好地了解佳楠的產品。

密封與氣密連接器比較表

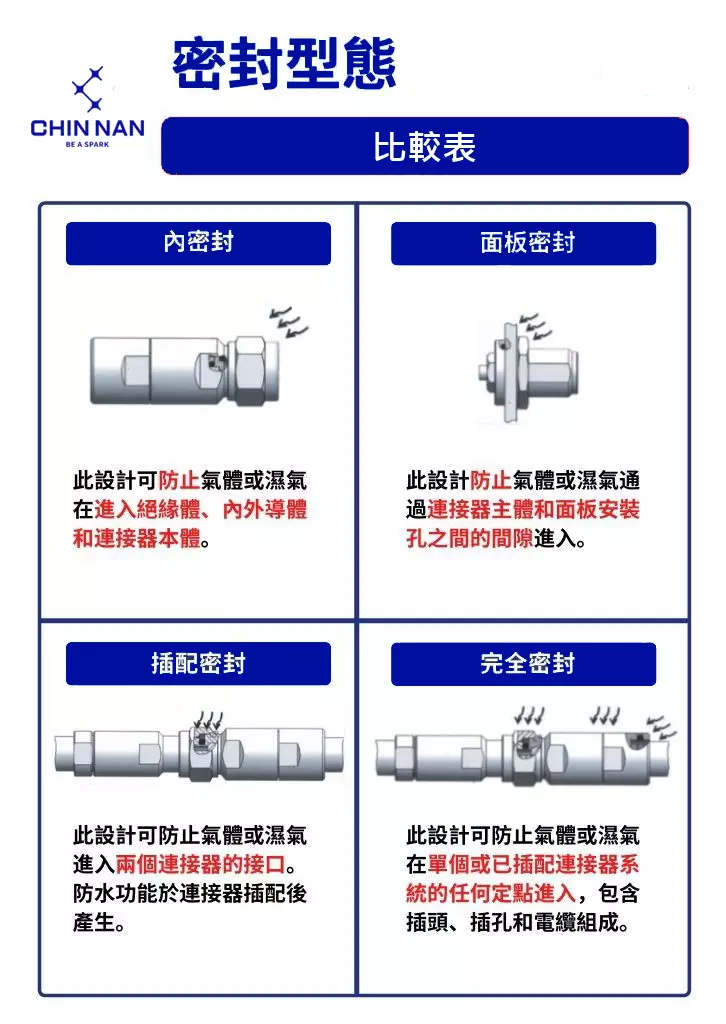

比較表:密封型態

除了密封材料的選擇,佳楠採用不同的密封技術來滿足顧客需求,下圖中有四種密封類型,皆可達到滿足要求的密封表現。
密封型態比較表

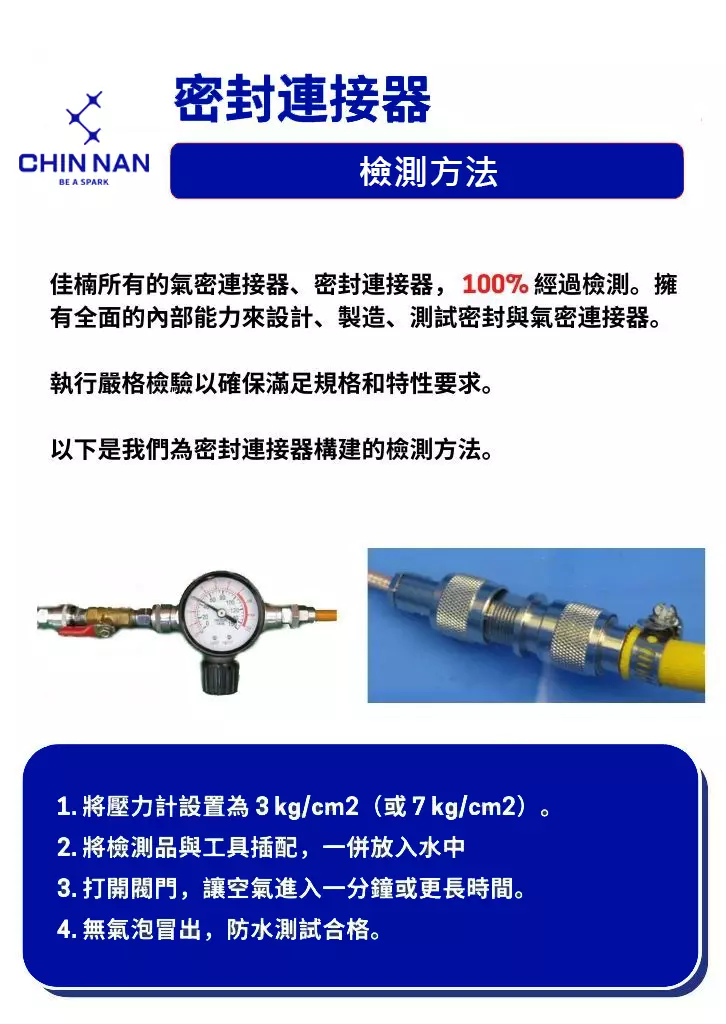

檢測方法

密封連接器檢測方法







第三方測試報告



Degrees of Protection Provided by Enclosures

(1) Degrees of Protection Provided by Enclosures



IP-68

(2) IP-68



Dustproof Test

(3) Dustproof Test
