Coaxial Adapter
Typically, adapters are used to change RF interface. Adapters are the perfect way to quickly change the gender of an already-terminated cable. Also, adapters can be used in test & measurement application.
1.0/2.3
Coaxial Adapter
1.0/2.3 Connector Applied Frequency Up to 4 GHz.
•Features: Space saving, dense packing, high data rates
•Fastening Type: Push-Pull
•Impedance: 50 Ω
•Frequency Range: DC to 4 GHz
•Terminations: Crimp, Solder
•Suggested Application: Encoders, Base Stations, Filters & Wireless Components, Switching Equipment, Data communication, Video Processors
4.1/9.5
Coaxial Adapter
The 4.1/9.5 connector, also known as the MINI DIN connector. It shares the same mechanical design as the 7/16 connector but in a more compact size, ideal for installations in limited spaces.
• Features: Low VSWR, High Power Handling, Seismic Resistance, Special Environmental Protection
• Mounting Type: Threaded
• Impedance: 50 Ω
• Frequency Range: DC - 7.5 GHz
• Termination Types: Crimp, Clamp, Solder, Plug, Adapters
• Suggested Application: Wireless Base Station Communication, Broadcasting, Microwave Communication, RF Testing and Measurement Equipment, Satellite Communication, and other High-Frequency RF Applications.
6G_75ohm
Coaxial Adapter

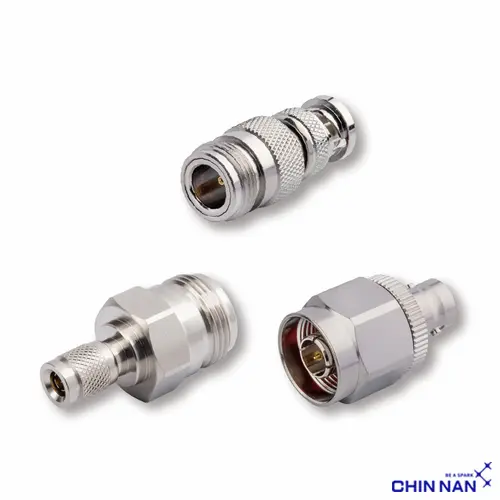

Chin Nan launched new products of 75 ohm connectors which operate at the increased bandwidth and frequencies required for UHD Serial Digital Video system.
They are provided superior VSWR, impedance and return loss through 6 GHz.
The 6G_75 ohm connectors are available for BNC, 1.0/2.3 connectors.
7/16
Coaxial Adapter
7/16 Adapter applied frequency up to 7.5 GHz
•Features: Low VSWR, excellent power handling capability, vibration resistance, environmental protection.
•Fastening Type: Threaded
•Impedance: 50 Ω
•Frequency Range: DC to 7.5 GHz
•Terminations: Crimp, Clamp, Solder, Plug In
•Suggested Application: Radio Base Station, Broadcast Communication
BNC
Coaxial Adapter
For 50 Ω, applied frequency is up to 4 GHz. For 75 Ω, it is up to 1 GHz.
•Features: Low installed cost, fast assembly
•Fastening Type: Bayonet lock
•Impedance: 50 Ω / 75 Ω
•Frequency Range: DC to 4 GHz
•Terminations: Crimp, Clamp, Solder, Plug In
•Suggested Application: Computer network, Audio, Data Processing & Telecommunications Equipment
F
Coaxial Adapter

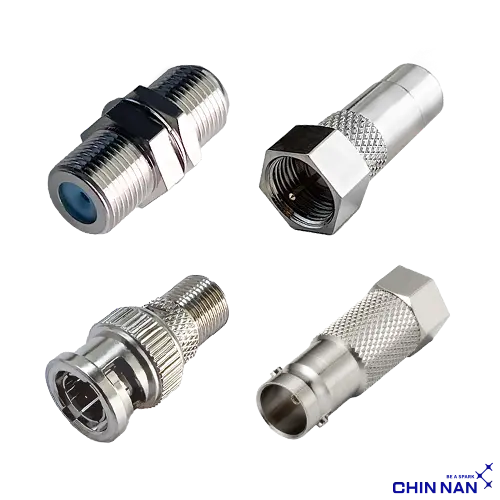

- Features: TV system connections and conversions in various fields.
- Connector Type: Threaded type.
- Impedance Value: 75 Ω.
- Frequency Range: DC - 3GHz.
- Terminal Types: Crimp, clamp, solder, plug, adapter.
- Suggested Applications: Home TV cable receivers, satellite antenna systems, wireless radio frequency applications, CCTV systems, etc.
Hermetic
Coaxial Adapter
Chin Nan hermetic connectors are designed for use in harsh application environments.
The sealing (helium leak) rate for our hermetic connectors can achieved to 1X10-8 cc/sec.
MCX
Coaxial Adapter
MCX Connector Applied Frequency Up To 6 GHz
•Features: Space saving, fast assembly
•Fastening Type: Snap-On
•Impedance: 50 Ω
•Frequency Range: DC to 6 GHz
•Terminations: Crimp, Solder
•Suggested Application: GPS, Automotive, WLAN, PC/LAN, Base Station, Radios, Wireless/Network Antenna, Instrumentation, Telecommunications
N
Coaxial Adapter
For 50 ohm impendence, applied frequency range is up to 11GHz. For 75 Ohm impendence, it is up to 1.5 GHz.
•Fastening Type: Threaded
•Impedance: 50 Ω / 75 Ω
•Frequency Range: DC to 11GHz
•Terminations: Crimp, Clamp, Solder
•Suggested Application: Aerospace, Broadcast, Audio, Video as Microwave Components like Filters, Couplers, Dividers, Amplifiers, and Attenuators.
*Please notice that there will be damages or disfunction if N connectors of 75 Ω and 50 Ω were matched.
RCA
Coaxial Adapter
• Features: Widely used in video, audio analog, and digital color difference component transmission.
• Fixing Type: Plug-in
• Impedance: 75 Ω
• Frequency Range: DC - 250 MHz
• Terminal Types: Welding, Plugging, Adapter
• Suggested Application: Commonly used in low-frequency signal transmission, such as professional audio equipment, entertainment systems, audiovisual equipment, and consumer electronics like televisions.
Slide-On
Coaxial Adapter
Blind mate connectors are used in which the mating action happens where equipment must slide in and make connections inside the cabinet.
The connectors provide with a slide-on interface for low mating and unmating forces.
SMA
Coaxial Adapter
For flexible cable type of SMA connectors, the frequency range is up to 12.4 GHz; as for semi rigid cable type, the range is up to 18 GHz.
•Features: Low VSWR, broadband performance
•Fastening Type: Threaded
•Impedance: 50 Ω
•Frequency Range: DC to 18 GHz
•Terminations: Clamp, Crimp, Solder
•Suggested Application: PCB, Microwave Components, RF Assemblies
SMB
Coaxial Adapter
For SMB connectors with 50 Ohm impedance, the frequency range is up to 4 GHz; as for ones with 75 Ohm impendence, the range is up to 2 GHz.
•Features: Fast assembly, space saving
•Fastening Type: Snap-On
•Impedance: 50 Ω / 75 Ω
•Frequency Range: DC to 4 GHz
•Terminations: Crimp, Clamp, Solder
•Suggested Application: Telecommunications, Test Equipment, Instrumentation, GPS
SMP
Coaxial Adapter
SMP connector applied frequency is up to 40 GHz
•Features: High density packaging, space saving, fast assembly, anti-vibration
•Fastening Type: Snap-On/Push-On
•Impedance: 50 Ω
•Frequency Range: DC to 40 GHz
•Terminations: Solder
•Suggested Application: Antenna, Broadband, Military, Instrumentation, Medical
SMT
Coaxial Adapter
SMT Adapter applied frequency is up to 6 GHz. It is compatible with U.FL, MHF series.
•Features: High density packaging, space saving, fast assembly
•Fastening Type: Snap-On
•Impedance: 50 Ω
•Frequency Range: DC to 6 GHz
•Terminations: Solder, Crimp
•Suggested Application: GPS, PDA, Bluetooth, Instrumentation, Test Points, Wireless Communication Devices, Mini-PCI
SSMB
Coaxial Adapter
• Features: Quick installation, space saving, smaller SMB
• Fastening Type: Snap-On
• Impedance: 50 Ω
• Frequency Range: DC to 4 GHz
• Terminations: Crimp, Clamp, Solder
• Suggested Application: Radio System, Video Equipment, Telecommunication, GSM
TNC
Coaxial Adapter
TNC coaxial connectors are similar to BNC, but they have different types of fixation. The 50 Ω TNC coaxial connector supports frequencies up to 11 GHz, while the 75 Ω version reaches up to 1 GHz.
• Key Features: Adaptation to extreme environmental conditions, resistance to shock and vibration
• Mounting Type: Threaded
• Impedance: 50 Ω
• Frequency Range: DC - 11 GHz
• Connector Types: Compression, Clamp, Solder, Plug
• Recommended Markets: Aviation, Data Transmission, Medical Equipment, Mobile Communication Devices, Testing Equipment, Microwave Components
Kits
Coaxial Adapter
Through our Connector Test Kit, you'll effortlessly discover a variety of commonly used standard test connectors for preliminary assessment. This enables you to quickly determine which connector best suits or closely matches your requirements, thereby enhancing work efficiency and accuracy.
